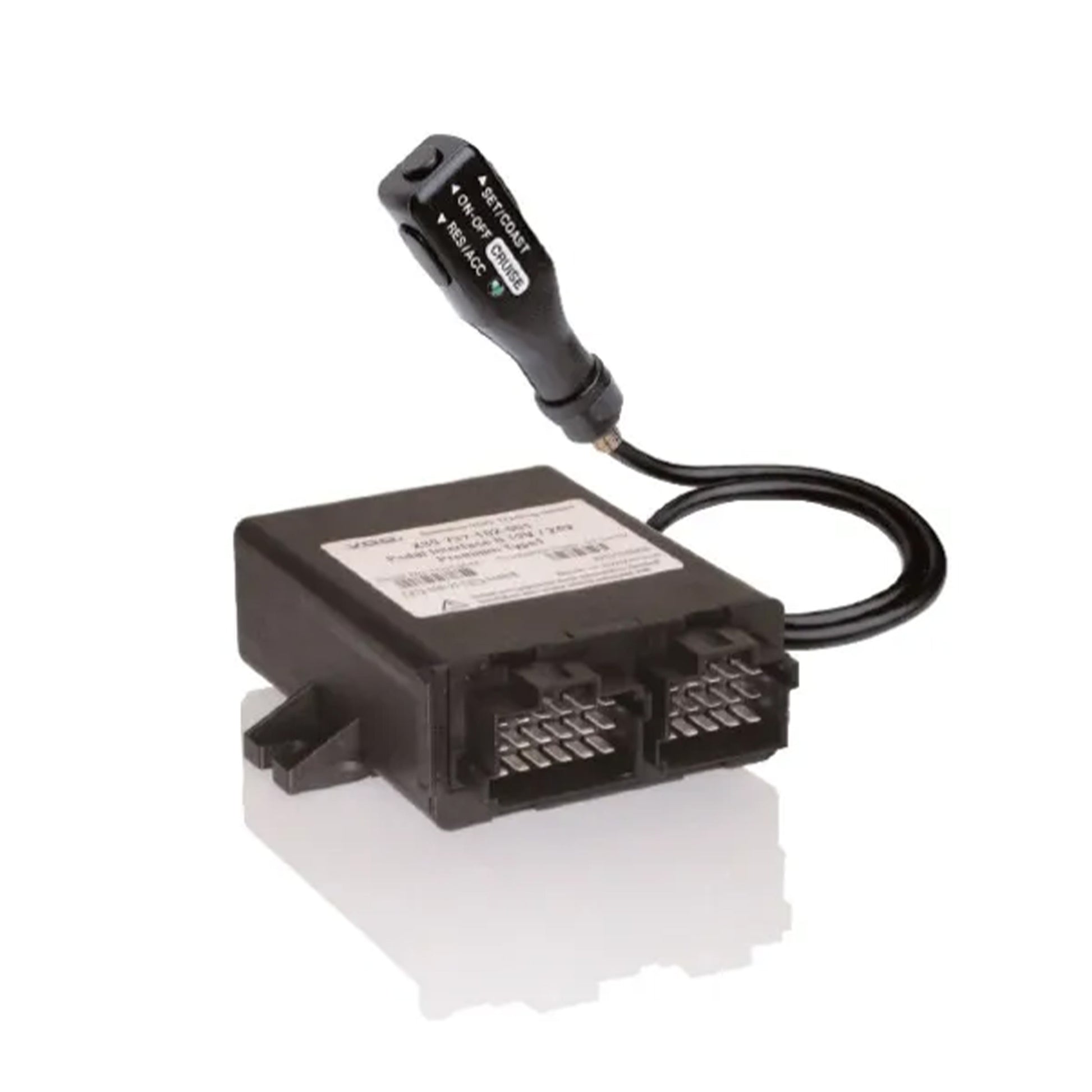

X10737202001 - Pedal Interface II Type 2 Premium

Flexible engine management for modern roads.

Today’s transport industry faces more challenges than ever—heavier traffic, stricter laws, rising fuel costs, and greater pressure on vehicles and drivers. The VDO Pedal Interface II offers a smart, cost-effective way to manage these demands.

Designed for electronically controlled engines, this system improves safety, efficiency, and comfort without the need to alter your engine’s standard software or hardware.

Key Features & Benefits:

- Speed Limitation: Helps prevent speeding, reduces accident risk, and supports driver safety.

- Tempostat® Cruise Control: Improves comfort on long drives and helps maintain steady speed.

- Engine-Speed Control: Allows you to set and limit engine RPM for specific driving or idling needs.

- No ECU Changes Required: Installs without reprogramming the engine control unit—saves time and cost.

- Programmable & Versatile: Tailored to different vehicle types and tasks.

- Lower Running Costs: Better fuel economy and reduced wear on components.

Technical Specifications:

- General: Inverse polarity and overload protection

- Nominal voltage: 12V and 24V

- Operating voltage: 8V to 32V

-Operating temperature: -40°( to +85°( (in acc. with IEC 68-2-38)

- Protection class: IP 44 (must be installed inside vehicle)

- Vibration and temperature tests: IEC 68-2-36, IEC 68-2-14

Standards: Approved in accordance with EU Directives 95/54 (EMC) and 92/24 (speed limitation)

- Diagnostics: RS 232 interface for diagnostics

- Inputs and outputs: 33

- Configuration and test tool: Via dongle with USB interface
