The VDO Kimax 2 Radio 101.313 is a precision axle load monitoring system for heavy-duty vehicles and trailers with air suspension, delivering real-time weight data via a bright 3-digit LED display with ±2% accuracy. Built for durability and reliability in harsh environments, it supports dual SG and dual air suspension inputs, features RS-232 connectivity for integration with onboard computers or printers, and operates across a wide voltage range of 10–30V DC with multiple alarm functions for enhanced safety and compliance.
1
/
of
1
GM Instruments Pty Ltd

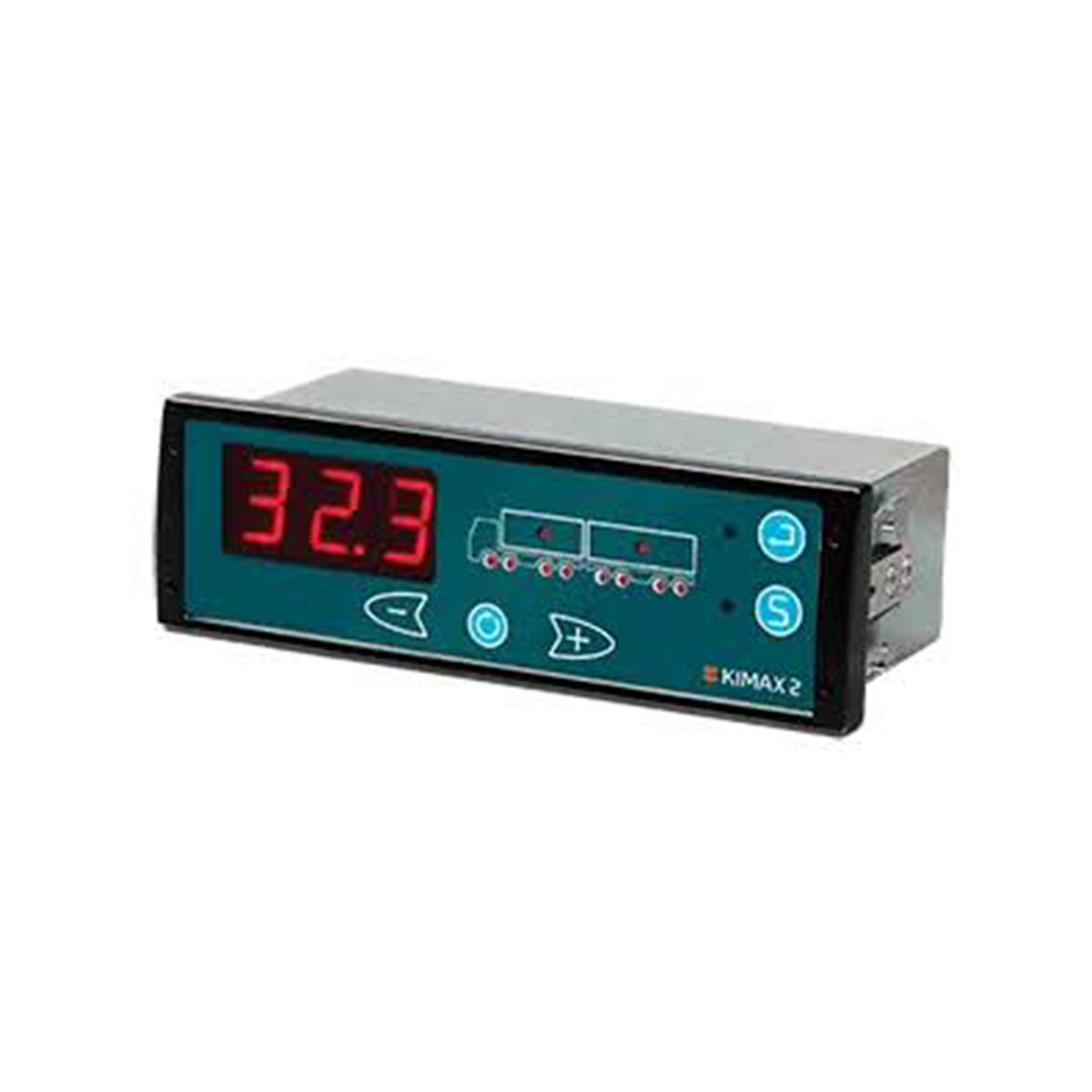

101.313 - Kimax2 Radio SG/SG/2air/2air
101.313 - Kimax2 Radio SG/SG/2air/2air
Regular price
$4,800.00 AUD
Regular price
Sale price
$4,800.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
The VDO Kimax 2 Radio 101.313 is a high-precision axle load monitoring system designed for heavy-duty vehicles and trailers with air suspension. Engineered for accuracy and durability, it offers real-time axle weight data through a three-digit 7-segment LED display and can be integrated with onboard computers and printers via RS-232 serial communication.
Technical Specifications:
- Supply Voltage: 10–30V DC
- Current Consumption: Max. 90 mA
- Display: 3-digit LED, 20.3 mm character height
- Measuring Accuracy: ±2% of max load (0 °C to +50 °C)
- Alarm 1: Flashing display
- Alarm 2: NPN open collector output, max 0.2 A / 50 VDC
- Sensor Input: SG sensor (0–20 mA)
- Air Connection: 6 mm quick-release hose
- Operating Pressure Range: 0–10.5 bar (0–150 PSI)
- Max Pressure: 15.5 bar (225 PSI)
- Interfaces: RS-232 for printer and onboard computer
- Device Bus: Power line communication
- Temperature Range: Operating: -25 °C to +70 °C; Storage: -40 °C to +70 °C
- Dimensions (DIN format): 182 x 53 x 75 mm
- Weight: Approx. 550 g
- Approvals: CE and E1 certified
Applications:
- Ideal for use in trucks, trailers, and commercial vehicles requiring continuous axle load control to meet safety and regulatory standards. Supports dual SG and dual air suspension input configurations.
